Space Grade Gen 3

Discrete MRAM

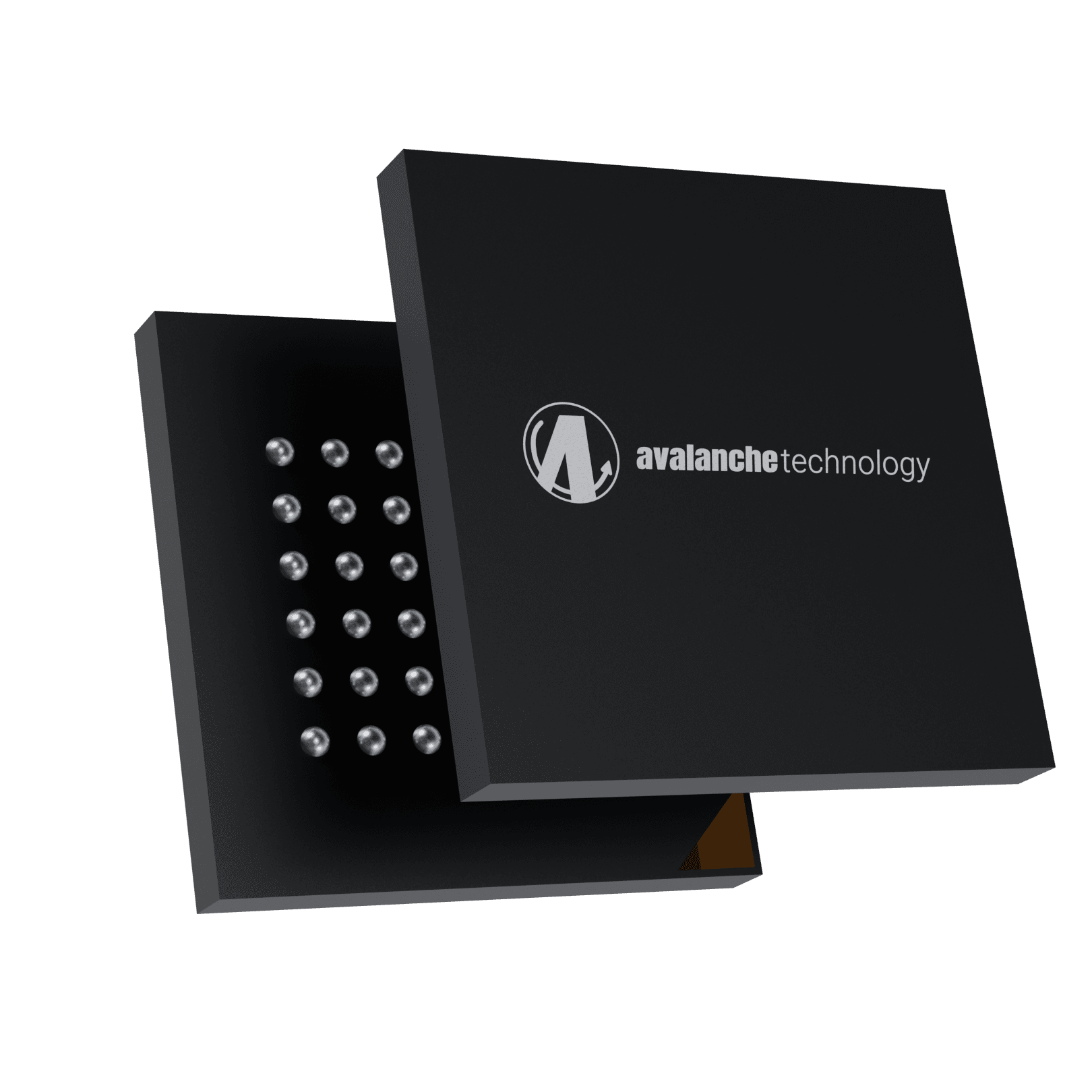

Avalanche’s Persistent SRAM (P-SRAM™) is non-volatile memory utilizing advanced STT-MRAM with simplified SRAM compatible read/write timings and no need for wait states or wear leveling as the data is immediately available when written. Architected for high reliability and radiation resilience, the products on this page and the pin-compatible extended qualification and screening options are ideal for high reliability applications such as aerospace and defense.

Discrete MRAM Applications

Boot Memory

Space Grade
Space Grade-E
PEMS I, II, III
QML

Storage Memory

Read More

U.2 NVMe
M.2 Module
Reference Platform

Space Products

Avalanche’s Gen 3 has become the optimal choice to replace traditional Flash and SRAM for unified memory architectures in next-gen, SWaP-optimized satellite systems, from Earth to Mars.

Quick Links

Request Radiation Test Reports Gen 3 Development Kits IBIS & Verilog Models Versal, UltraScale+ & UltraScale Boot Linux Drivers

Industry Leading

Density: 1Gb to 8Gb
Low Power: 50mA/Gb active
Write Cycle Endurance: 1016

Design Simplicity

Flexible yet robust write protection, providing terrestrial design simplicity compared to legacy memory.

Multiple Mission Support

Support for multiple mission images provides true in situ adaptability, software-defined satellites.

Gen 3 Product Qual Levels

Qual Package Temp LET
(MeV-cm2/mg)		 TID
(Krad)		 Burn In Qual Standards
QML Ceramic -55°C to 125°C 75+** 300** Custom QML-M to V
PEMS I, II, III Plastic -40°C to 125°C ≤37-75** 300* Custom NASA-INST-0001
Space Grade-E Plastic -40°C to 125°C 75* 100* 240 Hrs JESD47H.01
Space Grade Plastic -40°C to 125°C ≤37* 75* 48 Hrs JESD47H.01
Qual Package Temp LET (MeV-cm2/mg) TID (Krad) Burn In Qual Standards
QML Ceramic -55°C to 125°C 75+** 300** Custom QML-M to V
PEMS I, II, III Plastic -40°C to 125°C ≤37-75** 300* Custom NASA-INST-0001
Space Grade-E Plastic -40°C to 125°C 75* 100* 240 Hrs JESD47H.01
Space Grade Plastic -40°C to 125°C ≤37* 75* 48 Hrs JESD47H.01
* Radiation performance tested during Qualification phase.
** All components are guaranteed to come from the same lot. Radiation/Qual report for that lot/individual die available through the datapack.

Parallel x32

Product
Densities
1Gb, 2Gb, 4Gb, 8Gb
Voltages
3.0V (2.5V-3.3V)
Packages
142-ball FBGA
15 x 17mm
Temperature Ranges
-40C to 125C
Datasheet

Serial D-QSPI

1
2
Densities
1Gb, 2Gb, 4Gb, 8Gb
64Mb, 128Mb
Voltages
3.0V (2.7V-3.3V)
3.0V (2.5V-3.0V)
Packages
96-ball FBGA
20 x 20mm
56-ball FBGA
10 x 10mm
Temperature Ranges
-40C to 125C
-40C to 125C
Datasheet
Datasheet
Scroll

Parallel x32

1
Densities
1Gb, 2Gb, 4Gb, 8Gb
Voltages
3.0V (2.5V-3.0V)
Packages
142-ball FBGA
15 x 17mm
Temperature Ranges
-40C to 125C
Datasheet

Serial D-QSPI

Densities
1Gb, 2Gb, 4Gb, 8Gb
64Mb, 128Mb
Voltages
3.0V (2.5V-3.0V)
3.0V (2.5V-3.0V)
Packages
224-ball FBGA 20 x 20mm
56-ball FBGA
10 x 10mm
Temperature Ranges
-40C to 125C
-40C to 125C
Datasheet
Datasheet
Scroll

Parallel x32

Densities
1Gb, 2Gb, 4Gb, and 8Gb
Check Availability through Partners
Micross Frontgrade

Serial D-QSPI

Densities
1Gb, 2Gb, 4Gb, and 8Gb
Datasheet
Datapack
Check Availability through Partners
Micross Frontgrade
64Mb, 128Mb
Please contact Avalanche or check availability through Partners:
Micross Frontgrade

Parallel x32

Densities
1Gb & 4Gb
Op Environments
Rad Tol (100K), Non-RAD
Voltages
3.0V (2.5V - 3.6V)
Packages
142 CBGA, 1.0mm pitch
Temperature Ranges
-55C to 125C
Available from Micross

Serial D-QSPI

Contact Micross for Availability
Micross

Tab Content

This is a basic text element.

Tab Content

This is a basic text element.

Tab Content

This is a basic text element.

Tab Content

This is a basic text element.
"For secure, Hi-Rel and Space applications, Avalanche’s MRAM technology has emerged, filling a long-term void in the supply base for essential non-volatile memory technology. Avalanche is providing industry standard interface compatibility, radiation tolerance, reliability, exceptional retention/endurance properties, low power, and industry leading bit-density on an affordable trusted platform. We have been waiting for the benefits of MRAM technology for decades and now we have it – this is a critical and enabling technology."
Tim Canales, Senior Fellow
BLUEHALO - Advanced Innovation
"With Avalanche we can maintain excellent upset rates while substantially increasing our boot memory density, saving on board space and providing a board level solution that’s configurable for a variety of mission requirements and price points."
Robert Hillman, Director of Engineering
Power Device Corporation
